Phone Jack Vs Ethernet Jack: How to Tell the Difference?

Phone Jack Vs Ethernet Jack

Ever wonder about those little plugs in the backs of your Modem? You might see two of them a lot: phone and Ethernet jacks. They might look alike, but they each do a very different job.

You’ll get to know these jacks in this easy guide called “Phone Jack vs Ethernet Jack: How to Tell the Difference?”. You’ll learn what they look like, what they do, and how to avoid mixing them up.

Knowing the difference is important for ensuring your home and school devices work correctly. Are you ready to learn? Let’s get started –

What is a Phone Jack?

A phone jack, often called a Registered Jack 11 (RJ11), is a physical interface connecting your landline telephone to the more extensive telephone network. It connects your phone line and the public switched telephone network – a system of interconnected voice-oriented public telephone networks.

Typically, phone jacks come with two to four wires, pins or conductors. For most home telephone lines, only two wires are used; the other wires can be used for a second phone line or advanced features, such as a fax line.

What is an Ethernet Jack?

An Ethernet jack, or a Registered Jack 45 (RJ45), is a connector for Ethernet networking.

Ethernet networking is the most common method for connecting computers and other devices to a local area network (LAN) to share files, printers, and internet connections.

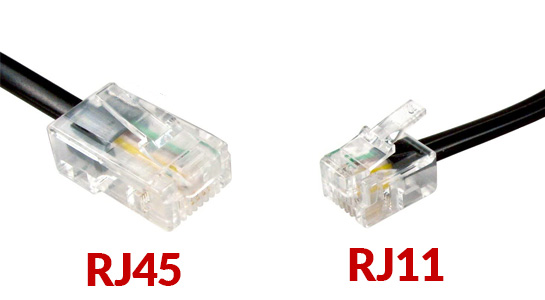

Phone Jack vs Ethernet Jack: Key Differences

Here are the critical differences between a phone and an ethernet jack –

Phone Jack (RJ11) Ethernet Jack (RJ45)
Size & Shape Smaller, generally supports two to four conductors Slightly larger, accommodates eight conductors
Construction Constructed from durable plastic, typically not as tightly twisted pairs Constructed from durable plastic, twisted pairs of wires with varying intervals to prevent electromagnetic interference
Functionality Used for landline telephone systems, supporting analog voice signals Used for Ethernet networks, supporting digital signals for high-speed internet and networking
Performance Supports lower frequencies, resulting in lower bandwidth Supports higher frequency and larger data transmission, providing faster internet speeds from 100Mbps to 10Gbps
Applications Primarily used for telephone connectivity, including fax machines, home phones Primarily used for network connectivity, including computers, routers, switches, game consoles, and Smart TVs
Dependency Can function during power outages relying on power from telephone lines Requires external power source, might not function during power outage
Reliability and Interference Susceptible to interference (noise), potentially affecting call quality Less susceptible to interference, offering more reliable data transmission
Installation Pre-existing in most homes, simple installation process It may require additional setup (cable running and termination), especially in older buildings
Upgradability Limited scope for upgradability, restricted by the telephone line’s capacity Allows for significant upgradability, newer category cables provide higher speed and performance

How to Identify a Phone Jack?


Here’s a step-by-step procedure to identify a phone jack (RJ11):

  1. Shape and Size: Look at the shape and size of the jack. Phone jacks have a small, rectangular shape that is almost square.
  2. Contact Positions: Count the number of positions or slots. Standard phone jacks will have four or sometimes six positions. The slots are usually filled with four small metal contacts.
  3. Width: The width of a phone jack is approximately 0.4 inches (9.65 mm). This is less than the width of an Ethernet jack.
  4. Connected Device: Check the type of device to which the jack is connected. If it’s connected to a traditional telephone device or a fax machine, it’s likely a phone jack.
  5. Cable Type: Phone jacks are typically associated with flat or rounded cables with two to four internal wires.

How to Identify an Ethernet Jack?


Here’s how to identify an Ethernet jack (RJ45):

  1. Shape and Size: Look at the shape and size; Ethernet jacks are square-shaped and slightly larger than phone jacks.
  2. Contact Positions: Count the number of positions. An Ethernet jack will have eight. You’ll find eight small metal contacts inside, separated enough to accommodate twisted pairs of wires.
  3. Width: Measure the width; an Ethernet jack is approximately 0.6 inches (11.68 mm).
  4. Connected Device: Check the device the jack is connected to. If it’s linked to a computer, modem, router, switch, or other network device, it’s likely an Ethernet jack.
  5. Cable Type: Ethernet jacks are typically associated with round cables with eight internal wires arranged in four twisted pairs.

Final Words

Common mistakes, like assuming they are interchangeable or overlooking the marginal size differences and conductor count, can lead to incorrect usage or device damage.

The correct identification and application of RJ11 and RJ45 jacks is crucial because each jack type has its unique purpose. RJ11 is best suited for traditional telecommunication applications, while RJ45 is ideal for modern, high-speed digital networking requirements.

Understanding these differences lets you optimize your home or office networks, ensuring efficient and reliable data communication.
